Introduction

GeometryReader is one of SwiftUI's most powerful yet often misunderstood views. While it's commonly used for basic size calculations, its true potential goes far beyond that. In this blog, we'll explore advanced GeometryReader techniques, performance considerations, and practical use cases that will level up your SwiftUI layouts.

Whether you're building custom layouts, creating responsive designs, or working with complex animations, understanding GeometryReader is essential. However, it comes with its own set of challenges, such as performance implications and layout quirks. By the end of this blog, you'll have a solid grasp of how to use GeometryReader effectively and avoid common mistakes.

Understanding Its Behavior

At its core, GeometryReader is a view that provides access to the size and position of its parent view. It does this by creating a new coordinate space for its content. This means that any child views inside the GeometryReader will position themselves relative to the GeometryReader's bounds, not the parent view.

Basic Example

Here’s a simple example to illustrate how GeometryReader works:

struct BasicGeometryExample: View {
    var body: some View {
        GeometryReader { geometry in
            Circle()
                .fill(Color.blue)
                .frame(width: geometry.size.width * 0.5,
                       height: geometry.size.height * 0.5)
                .position(x: geometry.size.width * 0.5,
                         y: geometry.size.height * 0.5)
        }
    }
}

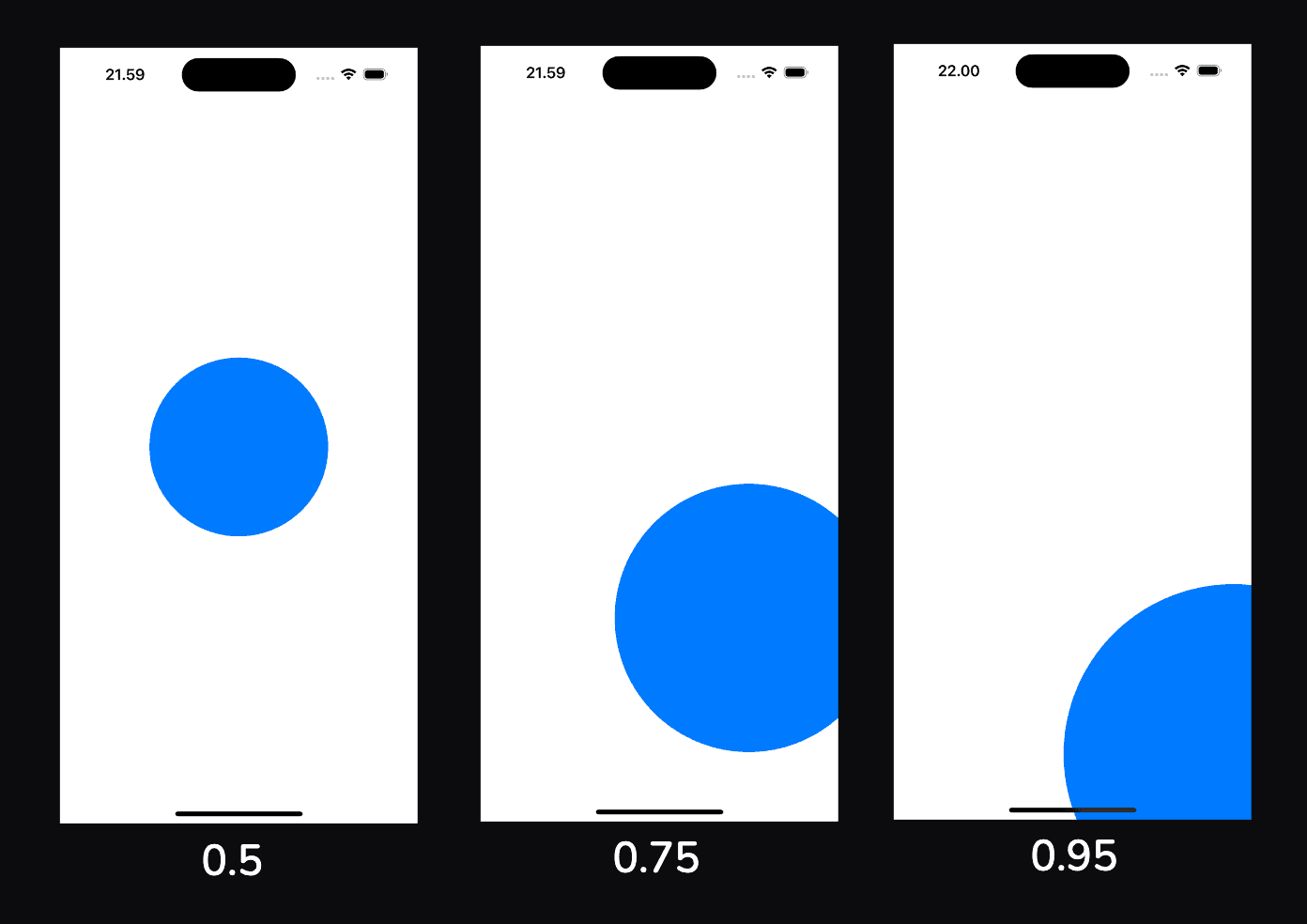

On the example below, I tried to modify the frame (width and height) and the position (x and y).

In this example:

• The Circle is sized to 50%, 75%, or 95% of the GeometryReader's width and height.
• When the circle's size is 50%, it is perfectly centered within the GeometryReader.
• When the circle's size is 75% or 95%, the circle's center remains at the midpoint of the GeometryReader, but its edges extend beyond the bounds, making it appear clipped. To ensure the circle is always visually centered, use a ZStack or alignment modifiers instead of .position(x:y:).

This is the key to understanding how GeometryReader works: it provides a local coordinate space for its children, which can be used to create dynamic layouts.

Common Pitfalls and Solutions

While GeometryReader is powerful, it can also lead to unexpected behavior if not used carefully. Let’s explore some common pitfalls and how to avoid them.

😖 Pitfall 1. GeometryReader is greedy!

GeometryReader naturally takes up all available space in its parent view. This can lead to unexpected layouts, especially in ScrollViews or Lists.

❌ Problematic Implementation

ScrollView {
    GeometryReader { geometry in
        Text("I might cause issues")
            .frame(width: geometry.size.width)
    }
}

Why is it problematic?

• GeometryReader takes up all available space by default.
• Inside a ScrollView, this creates a conflict because:
  • ScrollView needs to calculate its content size.
  • GeometryReader wants to expand to fill its parent.
  • This can break scrolling behavior or cause layout loops.
• Can lead to unexpected infinite height calculations.

✅ Better Approach

ScrollView {
    GeometryReader { geometry in
        Text("I'm well-behaved")
            .frame(width: geometry.size.width)
            .fixedSize(horizontal: false, vertical: true)
    }
    .frame(height: 50)
}

Why is it better?

• .frame(height: 50) explicitly constrains the GeometryReader's size, preventing it from trying to consume the entire ScrollView
• .fixedSize(horizontal: false, vertical: true) tells SwiftUI to respect the text's natural height while still allowing horizontal flexibility
• This combination allows the ScrollView to accurately calculate its content size
• Prevents layout loops because the size constraints are clear and deterministic

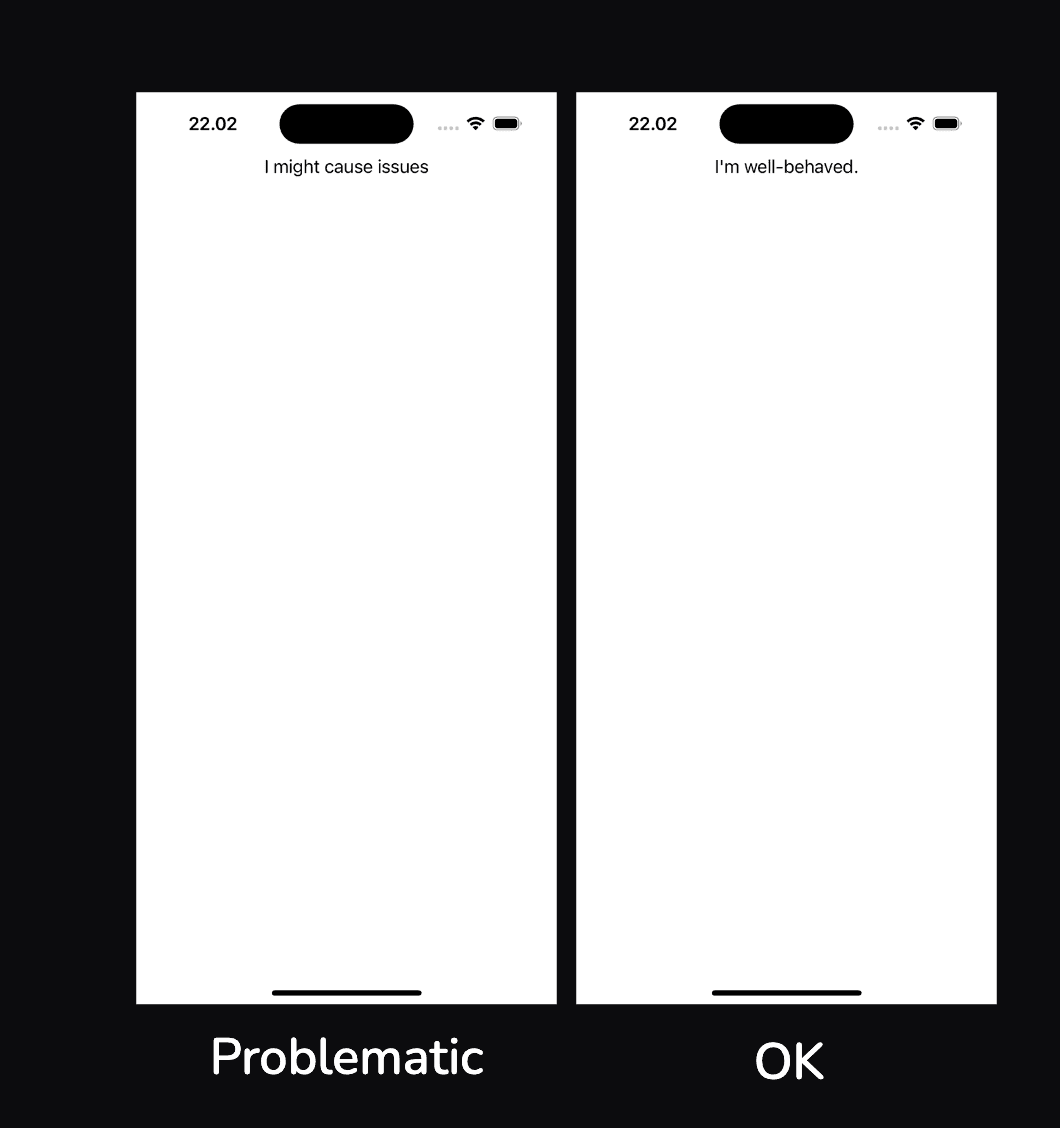

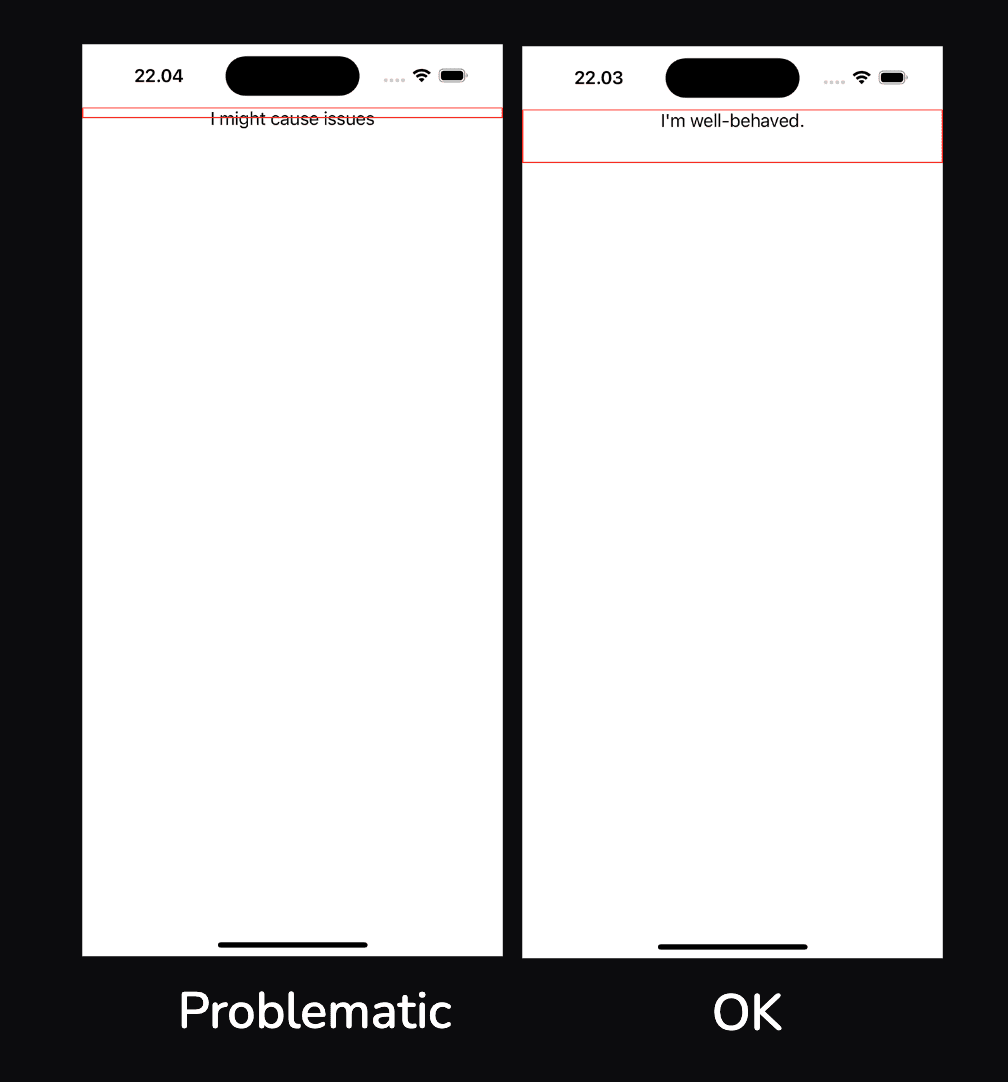

You may be wondering, Hmmm, that doesn't look much different?

😖 Pitfall 2. Performance Impact

Heavy use of GeometryReader can impact performance because it forces SwiftUI to calculate layouts more frequently. Let's say I have an ItemView:

struct ItemView: View {
    var size: CGSize
    var color: Color

    var body: some View {
        ZStack {
            Rectangle()
                .fill(color)
                .frame(width: 30, height: 30)
            Text("Item")
                .font(.caption)
                .foregroundColor(.white)
        }
    }
}

You don't want to implement it like this:

❌ Problematic Implementation

struct ProblematicView: View {
    let items = Array(1...1000)
    let colors: [Color] = [.red, .green, .blue, .orange, .purple]

    var body: some View {
        ScrollView {
            VStack(spacing: 10) {
                ForEach(items, id: \.self) { item in
                    GeometryReader { geometry in
                        ItemView(size: geometry.size, color: colors[item % colors.count])
                    }
                    .frame(height: 50)
                }
            }
            .padding()
        }
        .border(Color.red, width: 2)
    }
}

Why is it problematic?

• Creates a separate GeometryReader for each item.
• Each GeometryReader:
  • Adds overhead to the view hierarchy.
  • Forces layout recalculation independently.
  • Increases memory usage.
  • Caan cause stuttering during scrolling.
• Layout calculations multiply with the number of items.

✅ Better Approach

struct BetterView: View {
    let items = Array(1...1000)
    let colors: [Color] = [.red, .green, .blue, .orange, .purple]

    var body: some View {
        GeometryReader { geometry in
            ScrollView {
                VStack(spacing: 10) {
                    ForEach(items, id: \.self) { item in
                        ItemView(size: CGSize(width: geometry.size.width * 0.1, height: 30), color: colors[item % colors.count])
                            .frame(height: 50)
                    }
                }
                .padding()
            }
            .border(Color.blue, width: 2)
        }
    }
}

Why is it better?

• Single GeometryReader instance for all items.
• Layout calculations happen once instead of per item.
• Memory usage is significantly reduced.
• Geometry information is shared efficiently across all items.
• SwiftUI can optimize the rendering of the ForEach contents since the size context is stable.
• Reduces the complexity of the view hierarchy.
• Better scrolling performance due to fewer layout calculations.

Comparison

Compare the memory between these two approaches!

When you have a loooot of items, if you use problematic approach, it will create a lot of GeometryReader instances (in this case, 1000), while if you use the better approach, it will create only 1 GeometryReader instance.

The performance difference becomes more noticeable when:

• Scrolling through large lists
• Animating size changes
• Running on older devices
• Dealing with complex item views
• Having nested GeometryReader instances

Remember, GeometryReader should be used strategically and at the highest possible level in your view hierarchy where you need size information. This helps maintain good performance while still getting the layout flexibility you need.

Practical Use Cases for GeometryReader

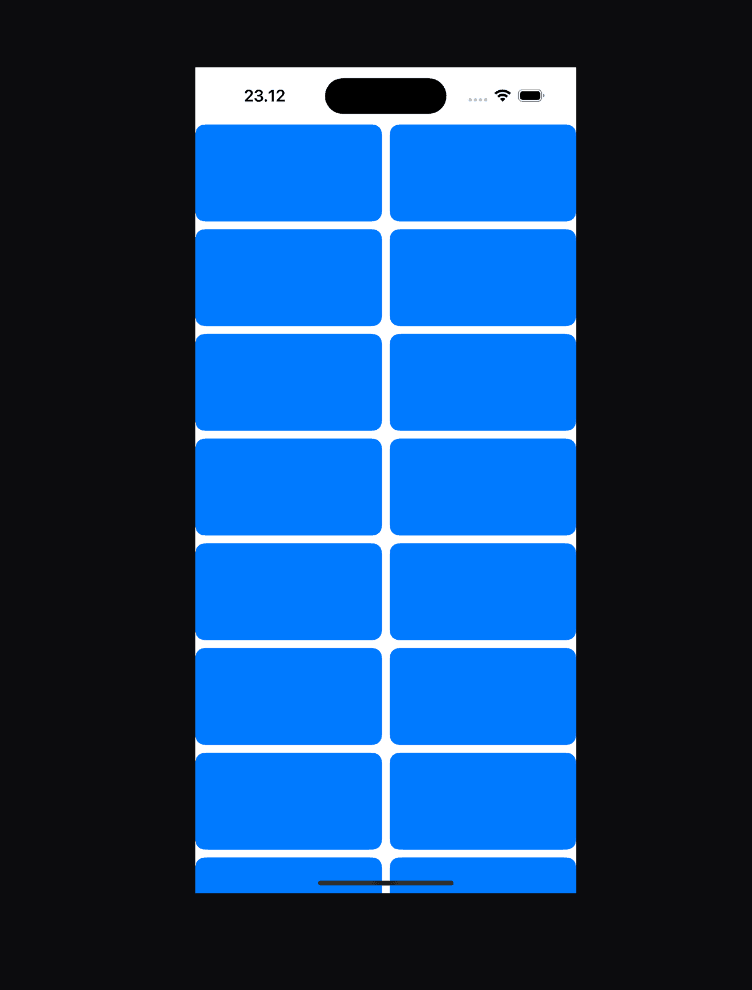

GeometryReader is perfect for creating layouts that adapt to the available space. For example, you can use it to create a grid that adjusts its columns based on the screen width.

1. Responsive Layouts

struct ResponsiveGrid: View {
    var body: some View {
        GeometryReader { geometry in
            let columns = Int(geometry.size.width / 150)
            LazyVGrid(columns: Array(repeating: GridItem(.flexible()), count: max(1, columns))) {
                ForEach(0..<20) { index in
                    RoundedRectangle(cornerRadius: 10)
                        .fill(Color.blue)
                        .frame(height: 100)
                }
            }
        }
    }
}

2. Custom Animations

You can use GeometryReader to create animations that respond to the size or position of views. For example, here’s a simple animation where a circle moves diagonally across the screen:

struct DiagonalAnimation: View {
    @State private var isAnimating = false

    var body: some View {
        GeometryReader { geometry in
            Circle()
                .fill(Color.blue)
                .frame(width: 50, height: 50)
                .position(
                    x: isAnimating ? geometry.size.width - 25 : 25,
                    y: isAnimating ? geometry.size.height - 25 : 25
                )
                .animation(.easeInOut(duration: 2).repeatForever(), value: isAnimating)
                .onAppear {
                    isAnimating = true
                }
        }
    }
}

3. Overlapping Views

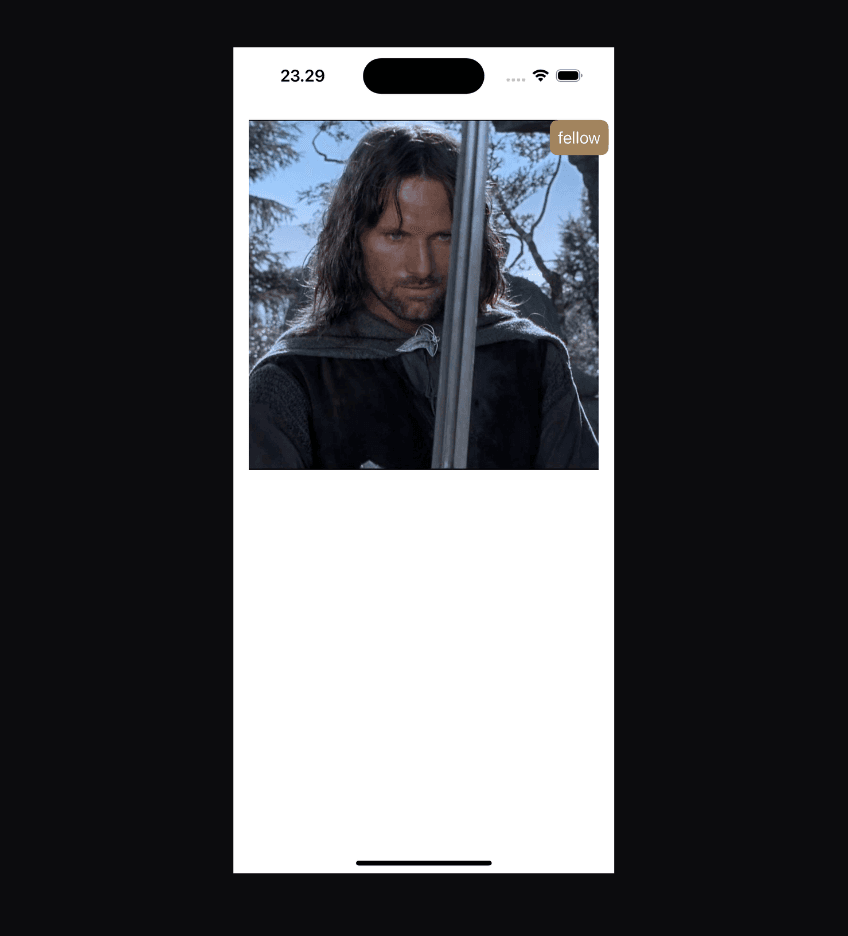

GeometryReader can be used to position views relative to each other. For example, you can create a badge that overlaps the corner of an image. Let's create a badge for Aragorn for being a great fellow ;)

struct BadgeOverlay: View {
    var body: some View {
        GeometryReader { geometry in
            Image("aragorn")
                .resizable()
                .scaledToFit()
                .overlay(
                    Text("fellow")
                        .padding(8)
                        .background(Color.brown)
                        .foregroundColor(.white)
                        .cornerRadius(8)
                        .position(x: geometry.size.width - 20, y: 18)
                )
        }
        .padding()
    }
}

Key Takeaways

GeometryReader is powerful but requiring careful handling. Through this blog, we've uncovered several key insights that can help you use it effectively:

1. Strategic Placement Matters

• Position GeometryReader at the highest possible level in your view hierarchy
• Use it only when dynamic size information is absolutely necessary
• Consider whether PreferenceKey or other SwiftUI layout tools might be more appropriate

2. Performance First

• Cache geometry values when they don't need frequent updates
• Avoid multiple GeometryReader instances when one will do
• Be especially cautious in scrolling interfaces and lists

3. Layout Behavior

• Remember that GeometryReader creates its own coordinate space
• Be mindful of its size-greedy nature, especially in scroll views
• Use size constraints when necessary to prevent layout issues

Best Practices Checklist

Before implementing GeometryReader in your next feature, ask yourself:

• Is GeometryReader really necessary for this layout?
• Can this be achieved with standard SwiftUI layout tools?
• Have I constrained the GeometryReader's size to prevent layout issues?
• Am I using GeometryReader at the highest possible level in my view hierarchy?
• Have I considered the performance implications of using GeometryReader?
